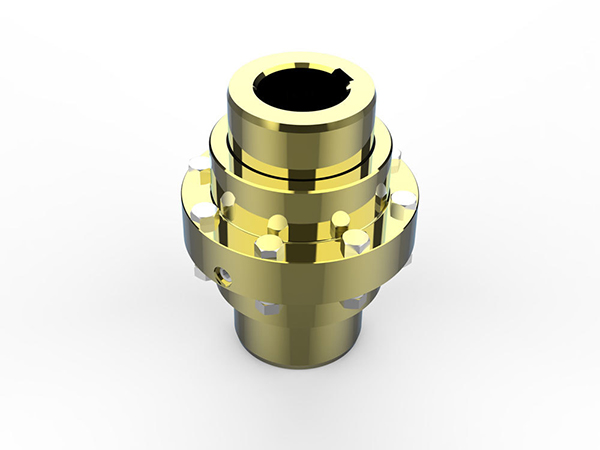

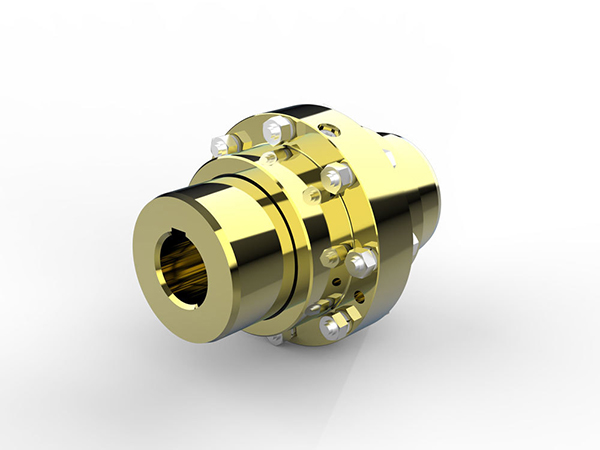

Drum Shape Gear Coupling
ConnectingdrivingshaftsanddrivenshaftsintheliftinganddrivingmechanismsofcranesModelNumberGICL13,GICL14,GICL15,GICL5,GICL6,GICL7,GICL8,GICL9,GICL10,GICL11,GICL12NominalTorqueTn(N.m)280000,5000,7100,355000,450000,10000,14000,18000,31500,40000,56000,80000,112000,160000,250000PermissibleRotationalSpeed[n](r/min)2680,2500,2350,2150,1880,1680,1530,1300,1180,1000,980,900,830,790,750Categories:Couplings
·Features
High load-bearing capacity and wide torque transmitting range
·Applications
Connecting driving shafts and driven shafts in the lifting and driving mechanisms of cranes
